Replacing your Cummins QSC 8.3 marine turbocharger can quickly become confusing. Search online, and you’ll find dozens of different part numbers, conflicting fitment information, and even truck turbos incorrectly listed for marine applications.
The good news is that the Cummins QSC 8.3L marine platform is actually much simpler than it appears.
Most QSC 8.3L marine engines use the Holset HX55WM water-cooled turbocharger platform, which mainly falls into two horsepower-based configurations:
- 450HP / early-generation applications
- 500–600HP high-output applications
In this guide, we’ll explain how to identify the correct turbocharger for your engine, avoid common mistakes, and help you choose the right replacement with confidence.
What Turbocharger Does the Cummins QSC 8.3L Marine Engine Use?
Cummins QSC 8.3L marine engines commonly use the Holset HX55WM wastegated turbocharger platform.
Unlike automotive or industrial turbochargers, marine turbochargers are specifically designed with a water-cooled turbine housing. This helps control engine room temperatures and improves safety in enclosed marine environments.
Because of this, using a non-marine truck turbocharger on a boat is never recommended.
Many online listings show VGT turbochargers like the HE300VG series when searching for “QSC 8.3 turbo.” These units are designed for trucks, agricultural equipment, and industrial machinery — not marine engines.
They are typically not water-cooled and may not properly fit your marine application.
The 2 Main HX55WM Configurations for QSC 8.3L Marine Engines
Although these turbochargers look similar externally, they are internally configured for different engine outputs. The easiest way to identify the correct replacement is by checking your engine horsepower rating.
450HP / Early-Generation Models
These lower-output configurations are commonly associated with early-generation QSC 8.3 marine engines.
Common Part Numbers
- 4041737
- 4041650
- 4025388
- 4955231
- 3595086
Recommended Replacement
Direct-Fit · Tested & Balanced · 2 Year Warranty
500HP–600HP High-Output Models
Higher horsepower QSC 8.3L marine engines typically use a more performance-oriented HX55WM configuration optimized for increased airflow.
Common Part Numbers
- 4043577
- 4043580
- 4043580HX
- 4043580H
- 4955500
Recommended Replacement
Direct-Fit · Tested & Balanced · 2 Year Warranty
Common Mistakes Buyers Make

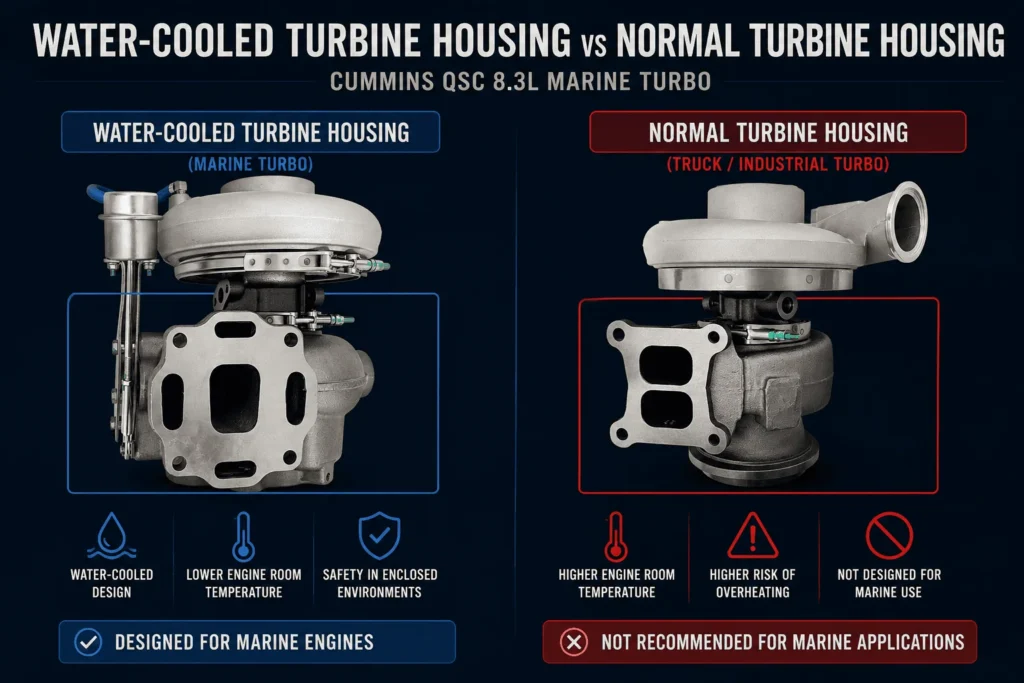

Buying a Truck Turbo Instead of a Marine Turbo
One of the most common mistakes is purchasing a truck or industrial turbocharger for a marine engine.
Marine turbochargers use water-cooled turbine housings and are engineered differently from land-based applications.
Even if the turbocharger appears visually similar, using the wrong application can lead to:
- Improper fitment
- Overheating
- Reduced reliability
- Premature turbo failure
Always confirm that the turbocharger is specifically built for marine use.
Confusing Cummins and Holset Part Numbers
Another common source of confusion is seeing multiple part numbers for the same turbocharger.
Cummins owns Holset, so many turbochargers carry both Cummins OEM numbers and Holset factory numbers.
For example:
- Cummins 4955500
- Holset 4043580
These may refer to the same turbocharger assembly.
Misunderstanding “NX” or “RX” Suffixes
Part numbers ending in:
- NX
- RX
usually indicate a Cummins ReCon remanufactured unit.
These units are designed to match original fit and function specifications.
How to Confirm the Correct Turbocharger Before Ordering
Before purchasing a replacement turbocharger, we strongly recommend checking the following:

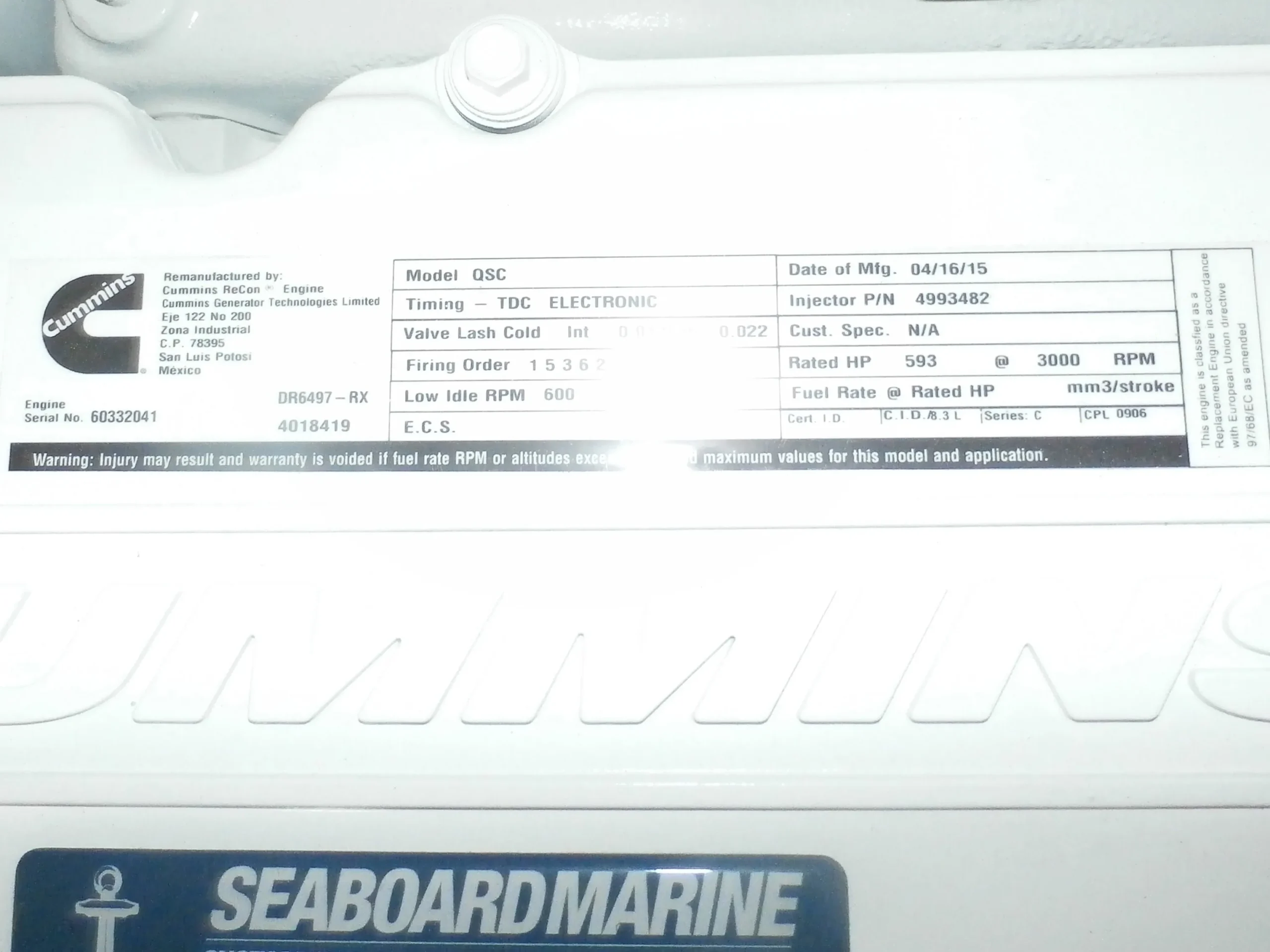

1. Engine Serial Number (ESN)
The ESN is the most reliable way to verify your engine configuration.
It is typically located on the engine data plate and allows accurate identification of the correct turbocharger setup.

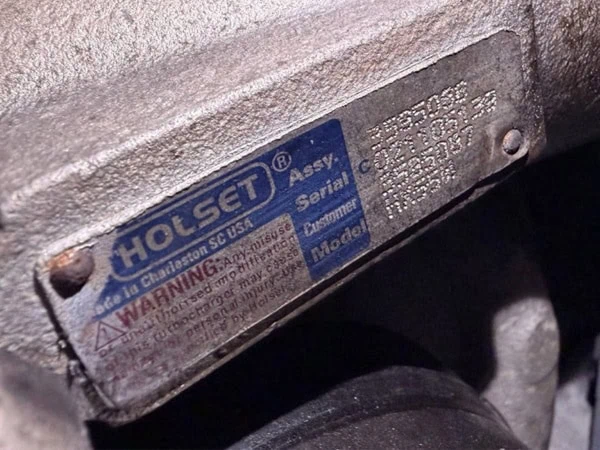

2. Turbocharger Tag Number
If your existing turbocharger is still installed, check the metal tag attached to the compressor housing.
The part number stamped on the tag can quickly help confirm compatibility.
Need Help Matching Your Turbo?
If you are unsure which HX55WM turbocharger fits your Cummins QSC 8.3L marine engine, our team can help.
Send us:
- Your Engine Serial Number (ESN)
- Existing turbocharger part number
- Engine horsepower rating
We’ll help confirm the correct replacement before you order.
FAQ
Most Cummins QSC 8.3L marine engines use the Holset HX55WM water-cooled turbocharger platform.
4041737 is commonly used on lower-output or earlier QSC 8.3 marine applications, while 4043577 is typically used on higher-output 500–600HP configurations.
No. Marine turbochargers are water-cooled and specifically designed for marine environments. Truck or industrial turbos are not suitable replacements.
The safest method is checking your engine serial number (ESN) and the part number stamped on your existing turbocharger tag.
